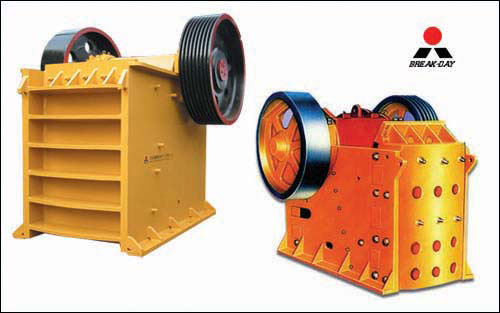

A Jaw Crusher is one of the main types of primary crushers in a mine or ore processing plant. The size of a jaw crusher is designated by the rectangular or square opening at the top of the jaws (feed opening). For instance, a 24 x 36 jaw crusher has a opening of 24" by 36", a 56 x 56 jaw crusher has a opening of 56" square. Primary jaw crushers are typically of the square opening design, and secondary jaw crushers are of the rectangular opening design. However, there are many exceptions to this general rule.
A Jaw Crusher reduces large size rocks or ore by placing the rock into compression. A fixed jaw, mounted in a "V" alignment is the stationary breaking surface, while the movable jaw exerts force on the rock by forcing it against the stationary plate. The space at the bottom of the "V" aligned jaw plates is the crusher product size gap, or the size of the crushed product from the jaw crusher. The rock remains in the jaws until it is small enough to pass through the gap at the bottom of the jaws.
Wen the jaw crusher machine start, the power of motor transmited through the belt, drives the moving jaw do a periodic motion to the fixed jaw surround the eccentric shaft. While moving jaw moves up, the angle between moving jaw and toggle plate increases. Then the moving jaw gets closed to the fixed jaw. During this process, the rock stuff will be squashed and crushed. The angle between moving jaw and toggle plate will decrease when the moving jaw moves down, then the moving jaw moves away from fixed jaw by the pulling of rod and spring. Finally, the products after crushing will be discharged from the outlet.
Notice: Any change of Jaw Crusher technical data should not be advised additionally.
