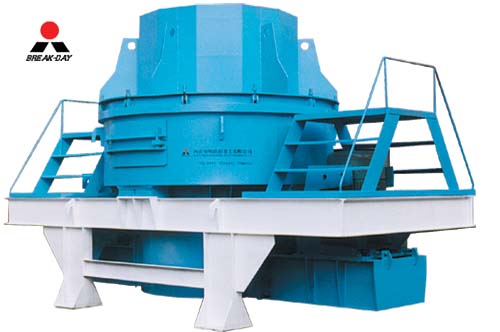

PCL Vertical shaft impact crusher (namely Sand Making Machine) is of high-power and low-consumption, which is designed depending on several year’s hard work and study of mechanical mining equipment. Sand Making Machine absorbed the advanced technology of the same products of liming Company of America, now is of the international level. PCL Vertical shaft impact crusher plays an important role in crushing minerals into pieces. PCL Vertical shaft impact crusher is widely used in all kinds of mineral, cement, corhart, bauxite chmotte, carborundum grain, glass raw material, machine made construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and so on material with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.
Stone less than 50mm enters Vertical Shaft Impact Crusher though conveyor belt. Stone is crushed by hitting other stones. Material falls down to impellor cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impellor and shell, and hit each other several times, finally smaller stone comes out, and goes to vibrating screen. Satisfactory material is transported to sand washing machine, however overlarge material will go back to Vertical Shaft Impact Crusher to be recrushed. Output sizes can be made according to customer’s requirement. If input size is larger than the designed size, other crushing equipment will be necessary.
Simple structure and low operating cost; high efficiency and low consumption; has the function of fine crush and crude grinding; slightly influenced by the moisture content of material, and the max moisture content is 8%; more suitable for crushing mid-hardness and high-hardness materials; cubic shape of final products, high density of piling up and low iron pollution; more wearable and easy maintenance; low working noise and light dust pollution.
Notice: Any change of Vertical Shaft Impact Crusher technical data shall not be advised additionally.
