Product Center  >  Crushing >  Cs series Cone Crusher

CS series cone crusher

Features:

According to customer's requirement, our company designs high-performance crusher, CS Series High-efficiency Spring Cone Crusher.

This crusher concentrates on the speciality of high-frequency, optimization of cavity-type, reasonable stroke and bases on the advanced technology introduced abroad, follows the conception of laminated crushing principle, more crushing and less grinding.

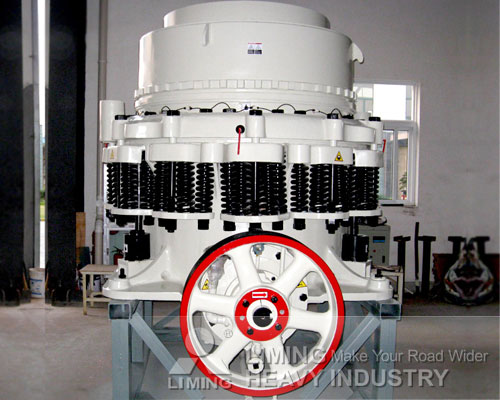

CS Series Cone Crusher

1. High-performance

Combining optimal designing of chamber type with applying reasonable speed and stroke, to make this kind of machine does more work with the same dynamic cone diameter. Therefo, this machine is of high-performance and manufactring capacity compared with other cone crusher of the same type.

Use lminated crushing principle, to make more cubic shape materials and less needle-like materials.

2. Good products size composition

The crusher applys for laminated crushing principle to make cubic shapes of final products stand for larger proportion. Acicular and flake shape products decrease and size fraction much more well-proportioned.

3. Good stability

If there is metal or other non-broken material come to the chamber, metal going through protection device will release it and then reset automaticly. The protection device has fixed discharge opening returning point and the original discharge opening can returing back immediately after the metal goes through the crushing chamber.

4. Convenient Cleaning-up

If the crusher stops under loading condition, hydralic cleaning system can clean up the crushing chamber quickly so that decrease the downtime.

5. High reliability.

Adopting main shaft with big diameter,heavy main frame and separate automatic Control System of thin oil lubrication system, so that it guarantees robustness and reliable operation of the crusher.

6. Easy maintenance and operation

All parts can be disassembled from top and the upper side, so that fixed cone and dynamic cone can be disassembled easily.

Under high shock and vibration environment, bronze Bearing can keep excellent bearing capacity and it is much more economic and easy for maintenance.

7. Low production costs

Due for big capacity, high reliability and easy maintenance, the production costs has been recuded greatly.

8. Widespread use

The speciality of CS Series High-efficiency Spring Cone Crusher is maximizing the performance to apply to all kinds of crushing process: from special coarse crushing to fine crushing; from fixed crushing plant to mobile crushing plant.

Symons Cone Crusher has different types of crushing chamber for choosing according to crushing process.

9. Separate Lubrication

Structure:

It mainly consists of frame, concaves assembly, mantle assembly, spring, bowl support, and transmission.

Auxilliary parts includes electrical system, lubrication system, and hydraulic cleaing system.

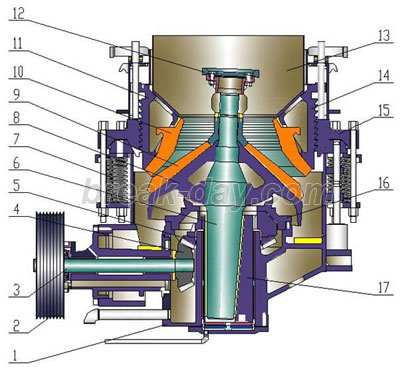

Like drawing 1, concaves assembly is composed of adjustment sleeve, concave, while mantle assembly is composed of main shaft, mantle head, mantle. Transmission part is composed of pulley, shaft, pionion and gear.

CS Series Cone Crusher

1. Frame 2. Pulley 3. Shaft 4. Pionion 5. Gear
6. Main shaft 7. Spring 8. head 9. Mantle 10. Concave
11. Adjustment sleeve 12. Distributor Plate 13. Feed Inlet
14. Adjustment ring 15. Support 16. Support for bowl 17. Eccentric bushing

Working Principle:

Motor drives eccentric bushing to rotate via V-belts, pulley, shaft, pionion, gear. Mantle rotates with eccentric bushing, so mantle goes near and far from the concave, and crush stone into smaller size.

Main Technical Data:

Standard

Model Dia. mm (inch) Cavity Feed Opeing Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/h) Weight (t) Dimension (mm)
Closing Side (mm) Open Side (mm)
CSB75 900 (3') Fine 83 102 9-22 580 75 45-91 15 2821×1880×2164
Coarse 159 175 13-38 59-163
CSB110 1200 (4') Fine 127 131 9-31 485 110 63-188 20 2821×1974×2651
Medium 156 156 13-38 100-200
Coarse 178 191 19-51 141-308
CSB160 1295 (4 1/4') Fine 109 137 13-31 485 160 109-181 27 2800×2342×2668
Medium 188 210 16-38 132-253
Coarse 216 241 19-51 172-349
CSB220 1650 (5 1/2') Fine 188 209 16-38 485 220 181-327 55 3911×2870×3771
Medium 213 241 22-51 258-417
Coarse 241 268 25-64 299-635
CSB315 2134 (7') Fine 253 278 19-38 435 315 381-726 110 4613×3251×4732
Medium 303 334 25-51 608-998
Coarse 334 369 31-64 789-1270

Short Head

Model Dia. mm (inch) Cavity Feed Opeing Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/hour) Weight (t) Dimension (mm)
Closing Side (mm) Open Side (mm)
CSD75 914 (3') Fine 13 41 3-13 580 75 27-90 15 2821×1880×2410
Coarse 33 60 3-16 27-100
CSD110 1218 (4') Fine 29 57 5-16 485 110 50-132 20 2560×1942×2928
Medium 44 73 10-16 90-145
Coarse 56 89 13-19 141-181
CSD160 1295 (4 1/4') Fine 29 64 3-16 485 160 36-163 27 2800×2342×2668
Medium 54 89 6-16 82-163
Coarse 70 105 10-25 109-227
CSD220 1676 (5 1/2') Fine 35 70 5-13 485 220 90-209 55 3917×2870×3771
Medium 54 89 6-19 136-281
Coarse 98 133 10-25 190-336
CSD315 2134 (7') Fine 51 105 5-16 435 315 190-408 110 4130×3251×4454
Medium 95 133 10-19 354-508
Coarse 127 178 13-25 454-599

Note: the capacity is based on limestone.
