Impact Crusher

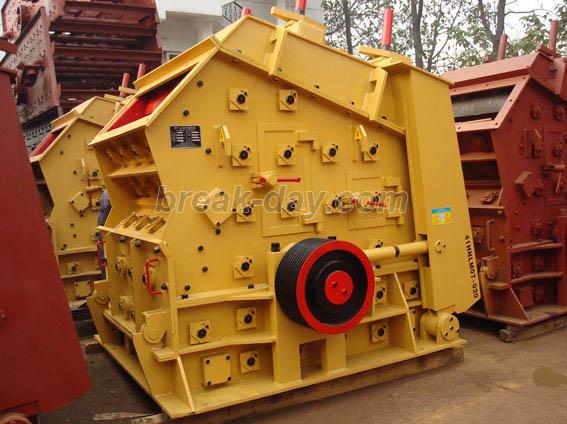

impact crusher

Our impact crusher is high-function equipment. Our impact crusher has the advantages of big reduction ratio, high crushing efficiency, and convenient maintenance.Our impact crusher is connected with locking sleeve assembly. The final product is cubical shape, with hydraulic or hand opening.The blow bar of our impact crusher is made of high chrome. Impact plate of impact crusher is a special shape. The operation of the impact crusher is very reliable.

Application Scope:
Impact crusher is applies to such materials whose length of side does not surpass 500mm, the compressive strengh does not surpass 260Mpa. It is better to granite, the limestone, the river pebbles, and so on.

Working principle:
The impact crushe materials with impact force. When the materials enter the blow area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The impact crusher employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the impact by the impact rack in the front and back of the machine.

Technical Data:
Notice: Any change of Impactor Crushers technical data shall not be advised additionally.

How impact crusher works?

Impact Crusher PDF Download (1.13MB)
