European Type Impact Crusher

PFW series impact crusher with the advanced world standard is latest generation product, absorbing the latest technology around the world. Because the rotor is the key part of the impact crusher and also the most critical part of inspection and acceptance, our company develop and produce the strong and heavy type rotor in order to get the higher rotary inertia. The use of high abrasion-resistant material and the best design of the crushing chamber make the performance of the crusher more remarkable.

PFW series impact crusher improve the adjusting device, easy to operate.

The design of three chamber crushing make the PFW series impact crusher perform well in the fine crushing and superfine crushing operation.

The design of the two chamber crushing simplifies the flow chart of coarse crushing operation.

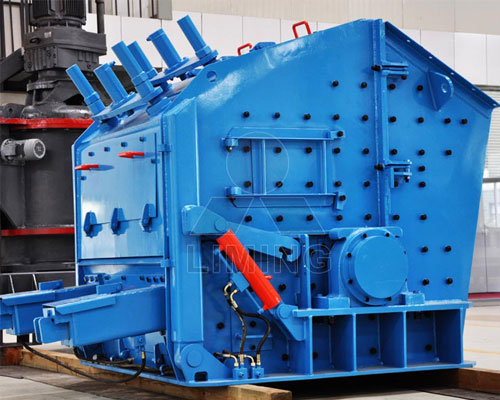

European Type Impact Crusher
Features:

1. Adoption of the world-class manufacturing processes and selection of the most high-end raw materials.

2. Heavy type rotor design and strict testing method to guarantee high quality rotor.

3. Adoption of the Integral cast steel structure on bearing seat makes it matches well with the crushing frame and increases the radial strength of it, while the divided design does not has this advantage.

4. The unique fixing device for hammers,make it more reliable.

5. The hydraulic adjusting device makes the maintenance easier and less.

6. Self-equipped open-top device can quickly complete the replacement of wearing parts such as the hammer.

7. Selection of the bearing with larger size and higher load.

8. Finite element analysis on the rotor to ensure its performance more stable and reliable.

Technical parameters:

Table 1: for crusher with three crushing chambers

Model Rotor size (mm) Feed opening (mm) Max. Feed size (mm) capacity (t/h) Power (kW) weight (t) Overall dimension (mm)
PFW1210Ⅲ Ф1150×960 570×990 250 70-120 90-110 15 2550×1870×2100
PFW1214Ⅲ Ф1150×1400 570×1430 250 90-170 132-160 19 2550×2310×2100
PFW1315Ⅲ Ф1300×1500 625×1530 300 180-270 160-200 25 2960×2570×2380
PFW1318Ⅲ Ф1300×1800 625×1830 300 220-300 200-250 30 2960×2870×2380
PFW1415Ⅲ Ф1400×1500 625×1350 350 280-350 200-250 30 3120x2650x2660

Table 2: for crusher with two crushing chambers

Model Rotor size (mm) Feed opening (mm) Max. Feed size (mm) capacity (t/h) Power (kW) weight (t) Overall dimension (mm)
PFW1210Ⅱ Ф1150×960 1100x1030 400 90-160 90-110 17 2400x1870x2550
PFW1210Ⅱ Ф1150×1400 1100x1430 500 132-200 132-160 22 2400x2310x2550
PFW1315Ⅱ Ф1300×1500 1200x1530 600 180-320 160-200 29 2700x2570x2800
PFW1318Ⅱ Ф1300×1800 1200x1830 700 240-400 200-250 34 27002870x2800
PFW1415Ⅱ Ф1400×1500 1300x1530 700 300-480 200-250 30 2900x2700x3000

Notice: Any change of technical data shall not be advised additionally.
